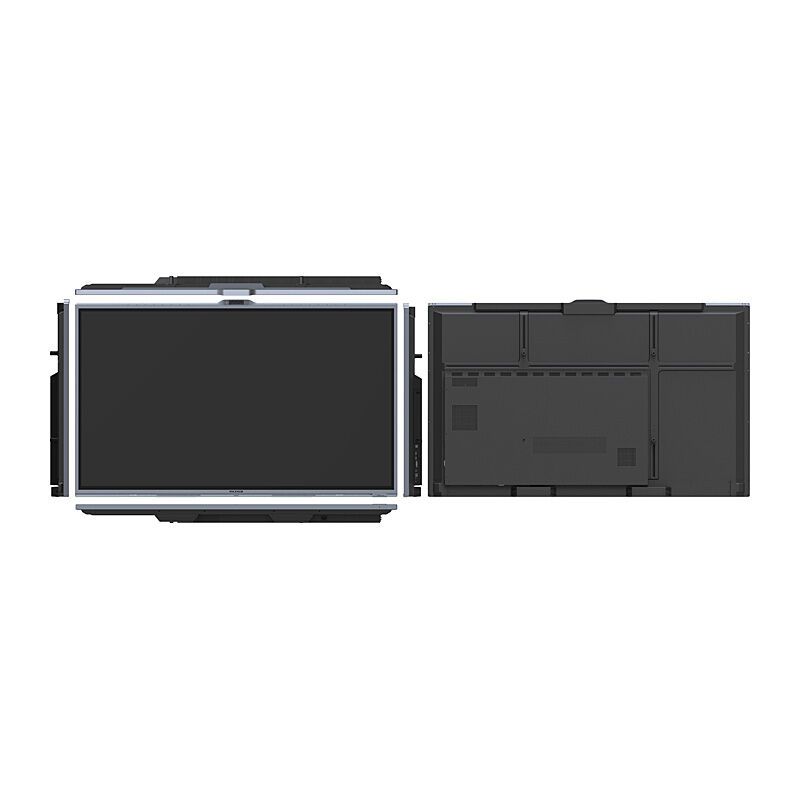

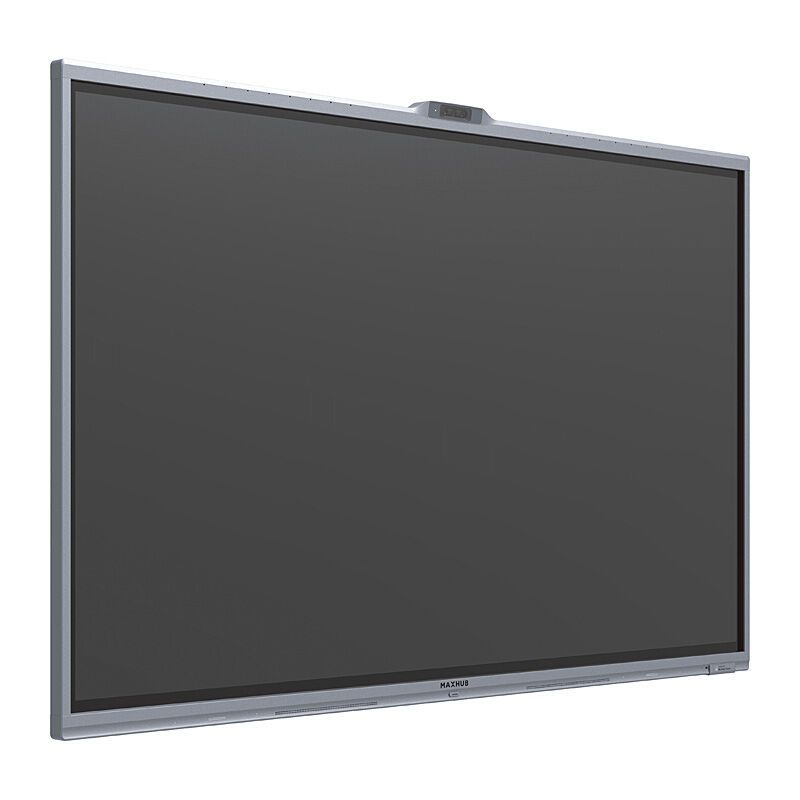

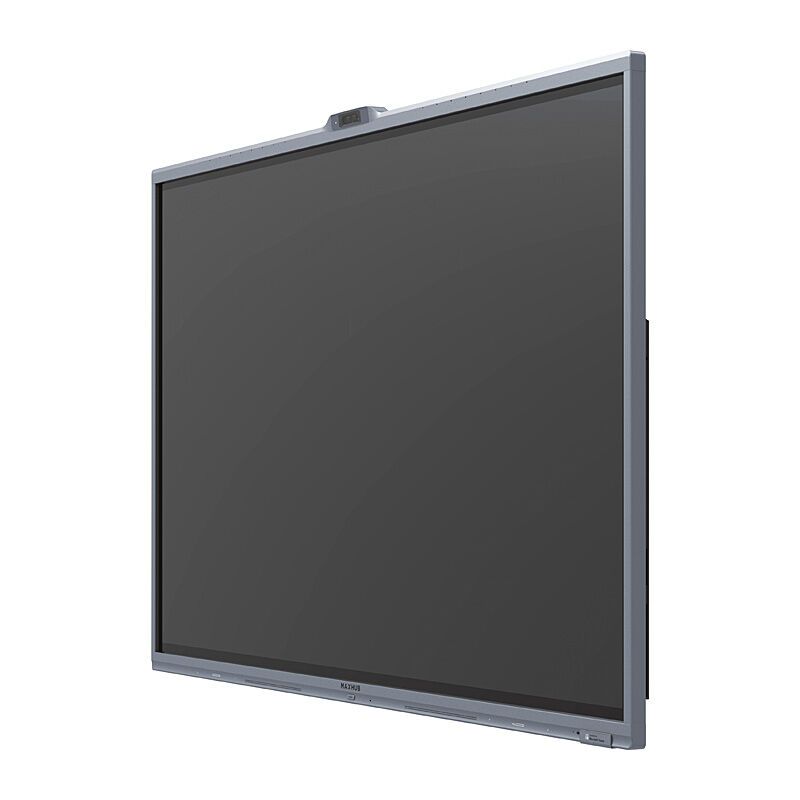

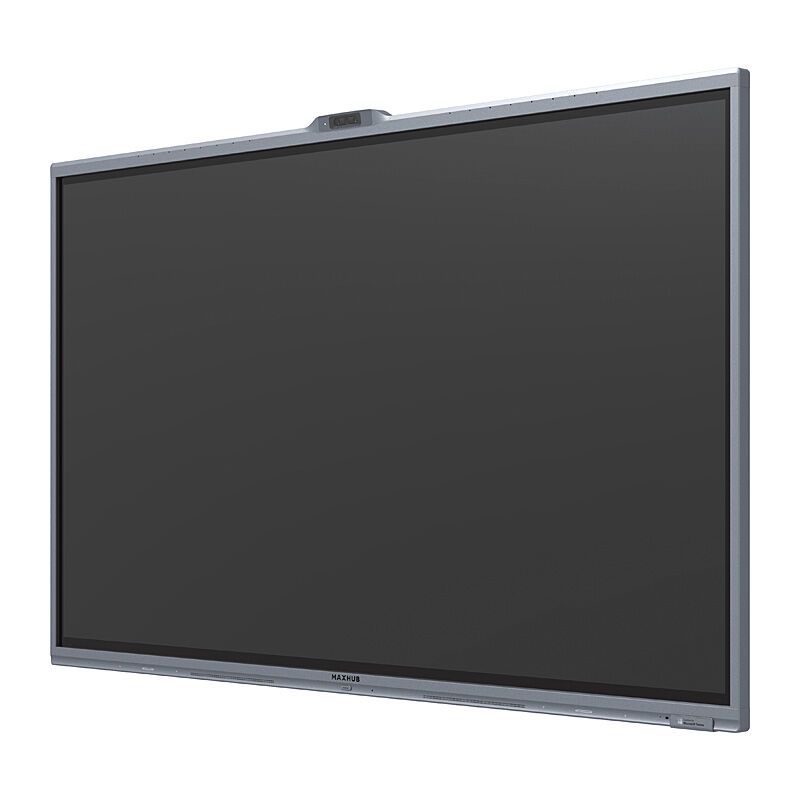

Maxhub Xboard V7 Mtr 75''

MAXHUB Xboard V7 MTR 75'' Features Professional 4K Display – High color accuracy, wide color gamut, NTSC 90%; non-glare technology with 25% haze Seamless Collaboration – Built-in touch display and Microsoft Whiteboard for real-time collaboration Triple-Camera System – Equipped with one wide-view lens and two tele-view lenses to provide clear views for all room participants AI-Powered Video Technology – Auto Framing, Speaker Tracking, Multi-Speaker Tracking, Intelligent Focus Premium Audio – Built-in 16 beamforming microphone array, Built-in stereo speakers, AI-powered noise reduction, full-duplex communication Flexible Content Share – Wired 4K content share via HDMI In; wireless content share via wireless dongle or MAXHUB Share application BYOD – BYOD mode with plug and play accessibility for switching between Teams Rooms mode and BYOD mode Pivot Secured and Managed – Win 11 IoT SAC with MAXHUB Pivot supported Specifications Display Model V7555T Screen Size (Inch) 75 Aspect Ratio 16:9 Panel VA Backlight DLED Brightness (Typ.) 350 nits Glass Zero parallax 3 mm thickness 9H Tempered Surface Technology 25% haze Non-glare technology Resolution 3840 × 2160 Refresh Rate 60 Hz Contrast Ratio 1200:1 (typ.) Viewing Angle (H × V) 178° / 178° Color Gamut 90% NTSC Display Orientation Landscape Response Time 8 ms Life Time > 50,000 hours Operation Hours (Hours / Day) 16 / 7 Display Color 1.07 B (10 bit) Color Accuracy Delta E ≤ 1.5 Sensor Ambient light sensor Motion Sensor Pixel Pitch 0.42975 (H) × 0.42975 (V) mm / 0.0169 (H) × 0.0169 (V) inch Display Area 1650.24 (H) × 928.26 (V) mm / 64.97 (H) × 36.55 (V) inch Connectivity I/O Ports (Interactive Display) HDMI In (2.0) × 2 To connect an external source (disabled as default, and can be enabled on MAXHUB Align app.) USB-A (2.0) × 1 To pair with wireless dongle-WT13M/ WT13S To connect keyboards or mouse, etc. Touch (USB-B 2.0) × 1 To connect a personal laptop to access to XBoard's camera & microphone and get touch back (disabled as default, and can be enabled on MAXHUB Align app.) Audio In × 1 To connect an external audio source to make XBoard a speaker Audio Out × 1 3.5 mm mini-jack, to connect an external speaker system RS232 × 1 9 pin Mic In (RJ45) × 1 To connect up to a maximum of three UC BM45 as expansion speakerphones Wireless Access Point Yes (for wireless presentation) Camera Wide Camera 50MP × 1 DFOV 99°, HFOV 86° Telephoto Camera 50MP × 2 DFOV 68° (combined), HFOV 63° (combined) Zoom 5x hybrid zoom Privacy Shutter Yes AI Features Auto Framing Speaker Tracking Multiple-speaker Tracking Intelligent Focus Microphone Quantity 16-mic array Pick-up Angle 180° Pick-up Range Best distance – 8 m / 26.2 ft Maximum distance - 15 m / 49.2 ft Feature Intelligent audio fence AI spatial sound AEC (Auto echo cancellation) ANC (AI noise cancellation) AGC (Auto gain control) Audio Sound Channel 2.1 Speaker Power 2×10W + 20W Power Power Supply 100-240V ~ 50/60 Hz Standby Power ≤ 0.5 W Power Consumption (Typ.) 155 W Power Consumption (Max.) 390 W Touch System Touch Technology Intelligent Touchscreen Technology (infrared recognition) Touch Point 50 points touch Object Recognition Range ≥ 1.5 mm Accuracy ± 0.5 mm Response Time ≤ 2.5 ms Writing Height ≤ 1 m Environmental Condition Operating Temperature 0°C~40°C Storage Temperature -20°C~60°C Operating Humidity 10%~90% RH Storage Humidity 10%~90% RH Altitude Below 5000 meters Accessory (Included in the Package) Wireless Module AP HDMI Cable (3 m / 9.8 ft ) × 1 Power Cord × 1 Passive Stylus × 2 Wall Mounts Kits × 1 Certification Safety IEC 62368-1 EMC Class B Warranty 3-Year warranty Physical Specification Dimension (W × H × D) 1709.4 × 1040.3 × 90 mm / 67.3 × 40.96 × 3.54 inch Shippi
