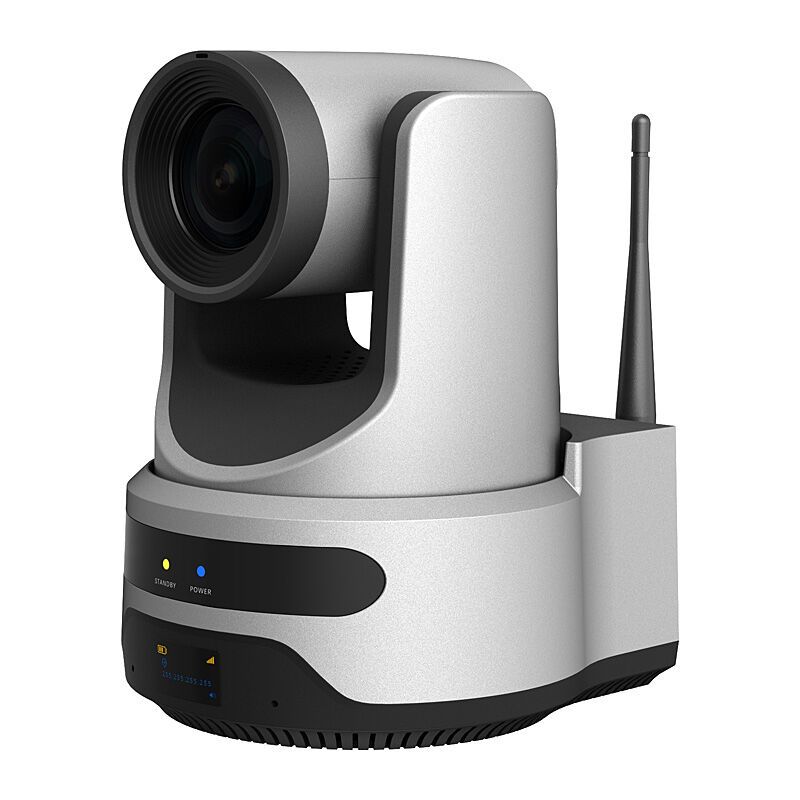

Maxhub Mobile Capture Ptz

MAXHUB Mobile Capture PTZ camera Features 40x Hybrid Zoom – Capture every detail clearly, even from a distance Long-lasting Battery Life – Designed for extended recording sessions Built-in Microphone – Integrated array microphone delivers clear, crisp audio within a 5 metre range Intelligent Presenter Tracking – Automatically follows the speaker to keep them in frame; simply click to select your target Specifications Camera Sensor Type: 1/2.8 inch, CMOS, 8.42 million pixels Scanning Method: Progressive Lens Focal Length: f = 6.25 mm ~ 125 mm, F1.58 ~ F3.95 Auto Focus: Supported Zoom: 40x hybrid zoom, 20x optical zoom Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON) Electronic Shutter: 1/30s ~ 1/10000s White Balance: Auto, indoor, outdoor, one-touch, manual, specified color temperature Digital Noise Reduction: 2D, 3D Signal to Noise Ratio: ≥ 55dB FOV: HFOV 60° ~ 3.5°, VFOV 35.7° ~ 2.0° Rotation Range: Horizontal ±170°, Vertical -30° ~ +90° Rotation Speed Range: Horizontal 2.7° ~ 35.7°/s, Vertical 2.7° ~ 31.5°/s Horizontal & Vertical Flip: Supported Features: Auto ICR, Backlight Compensation, Low Light Mode, Image Freeze Preset Positions: 255, Accuracy 0.1° USB Features Supported Operating Systems: Windows7/8/10/11, Mac OS X, Linux, Android Color Space: YUY2 / MJPEG / H.264 Video Format: YUY2 (2560×1440@30fps), MJPEG (3840×2160@30fps), H.264 AVC (3840×2160@30fps) USB Audio: Supported USB Video Communication Protocol: UVC 1.1 UVC PTZ Control: Supported Network Features Video Coding Standard: H.264 / H.265 / MJPEG Video Stream: First, Second Stream First Stream Resolution: 3840×2160, 1920×1080, 1280×720, 1024×576, 960×540, 640×480, 640×360 Second Stream Resolution: 1920×1080, 1280×720, 1024×576, 720×576, 720×480, 720×408, 640×360, 480×270, 320×240, 320×180 Video Bitrate: 32 Kbps ~ 102400 Kbps Bitrate Control: Variable Bitrate, Fixed Bitrate Frame Rate: 50Hz: 1–25 fps, 60Hz: 1–30 fps Audio Compression Standard: AAC Audio Bitrate: 96 Kbps, 128 Kbps, 256 Kbps Protocol Support: TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, UDP, etc. I/O Port USB Type-C × 1 USB 3.0 HDMI Out × 1 (HDMI 1.4b) RJ45 × 1 — 10M/100M adaptive ethernet port Line In × 1 — 3.5 mm audio interface RS485 × 1 — 3-pin Phoenix connector, maximum distance: 1200 meters, VISCA/Pelco-D/Pelco-P protocol Power Port × 1 — JEITA type (DC In 12V) Button × 2 — Reset button, Power button Electrical Parameters Input Voltage: DC 12V Input Current: 3.0A Battery: 9480 mAH (typ.) Power Consumption: 12W (max) Physical Parameters Product Dimension (W × D × H): 295 × 245 × 254 mm Shipping Dimension (L × W × H): 1 pc: 295 × 245 × 254 mm 4 pcs: 615 × 515 × 273 mm Net Weight: 1.9 Kg Gross Weight: 1 pc: 2.94 Kg 4 pcs: 13.24 Kg Accessories Power Adapter × 1 Power Cable × 1 Quick Start Guide × 1 Environmental Conditions Operating Temperature: -10°C ~ 40°C Storage Temperature: -40°C ~ 60°C Operating Humidity: 10% ~ 90% RH Storage Humidity: 10% ~ 90% RH Altitude: Below 5000 meters

Orders are dispatched from our Australian distribution partners. Delivery estimates are confirmed at checkout against live supplier availability, and you will receive tracking as soon as your order ships.

Larger orders may arrive in more than one shipment, each tracked separately. Until customer accounts are available, contact our team for the status of a shipment.

This product carries the manufacturer’s Australian warranty. Your rights under the Australian Consumer Law apply in addition to any warranty and cannot be excluded.

See returns and refunds, warranty claims, or contact our support team.
