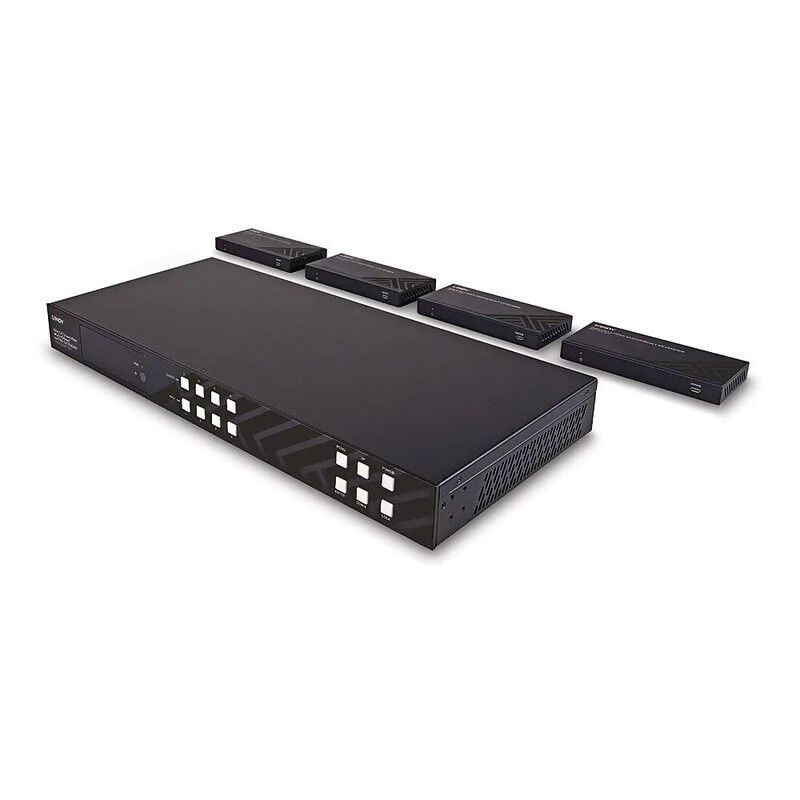

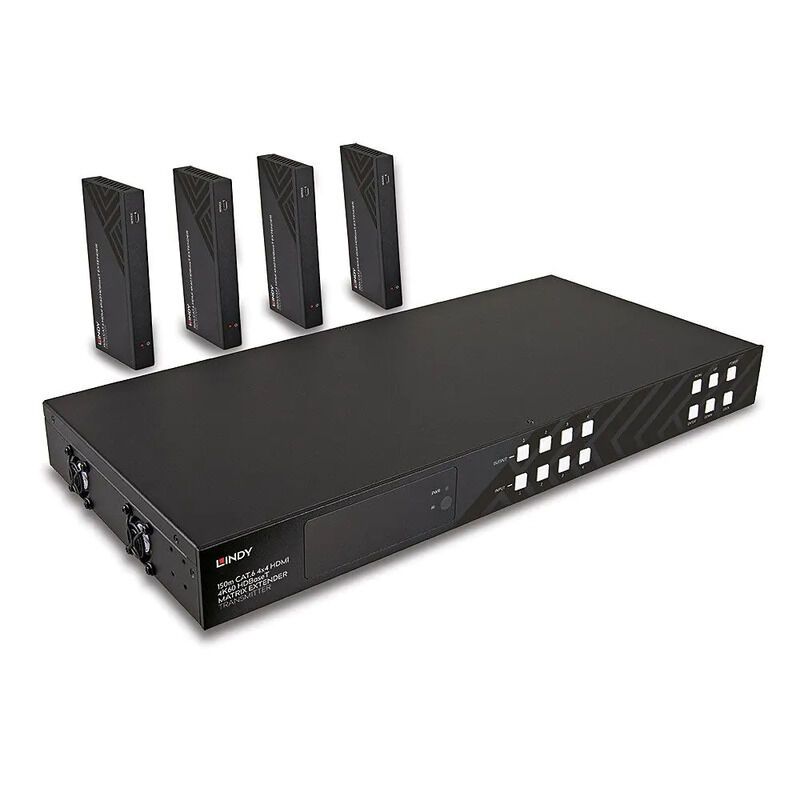

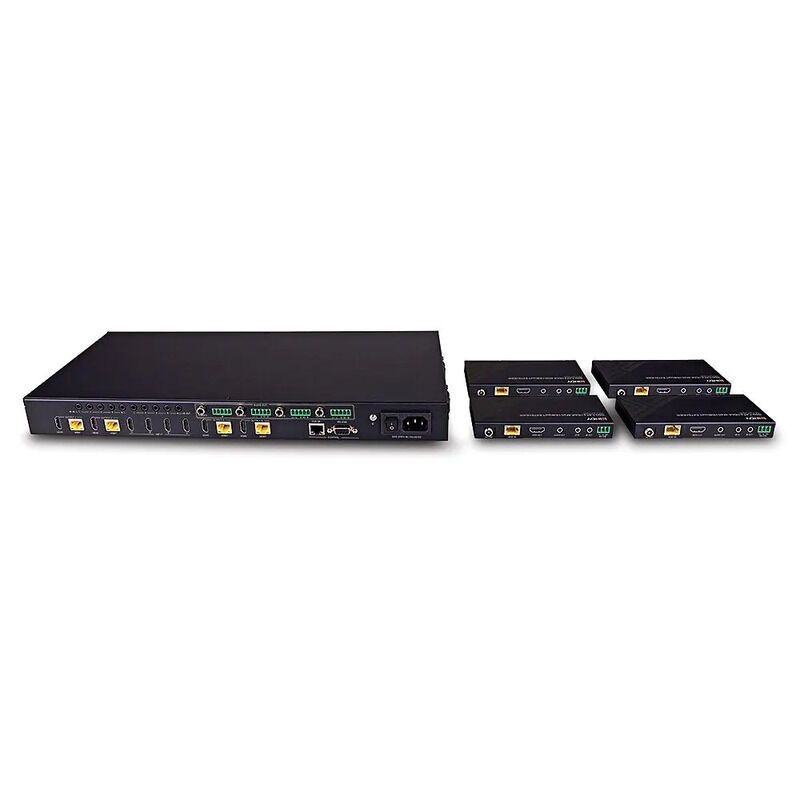

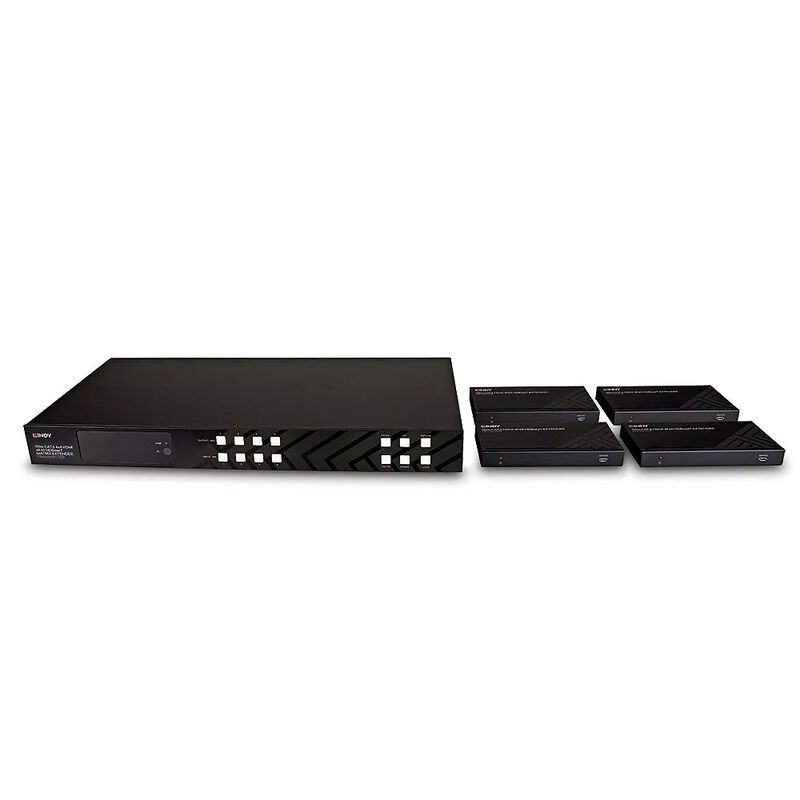

Lindy 150M CAT6 Matrix Extendr, image 1 of 4

Lindy

Lindy 150M CAT6 Matrix Extendr

SKU GT-023481 · MPN 38345

$4,104.95

Includes GST. Delivery calculated at checkout.

Out of stock

Enquire about this product

Lindy 150M CAT6 Matrix Extendr is out of stock, but items like this are usually available on order. Tell us what you need and we will come back to you with a lead time and price.

Product code: GT-023481

We use your details to answer this enquiry. We will not add you to any marketing list.

Payment options are shown at checkout.

Specifications
Specifications for Lindy 150M CAT6 Matrix Extendr
Bulky ItemNo
Dangerous GoodsNo
Pack Quantity1
Description

Lindy 150m CAT6 4x4 HDMI 4K60 HDBaseT Matrix Extender Features HDBaseT Matrix Extender that extends and distributes HDMI, IR & RS-232 signals to 4 displays at distances of up to 150m Supports resolutions up to 4K60Hz with HDR Features loop-through HDMI outputs for local monitoring Supports power over Cable (PoC), EDID management, downscaler and Audio de-embedding functions 2 year warranty Specifications AV Interface AV Interface: HDMI Interfaces Standard: HDMI 2.0 Supported Bandwidth: 18Gbps Maximum Distance: 120m (393.7ft) - 3840x2160@60Hz 4:4:4 8bit 150m (492.12ft) - 1920x1080@60Hz Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit HDCP Support: 2.2 EDID Pass Through: Presets, Cloning Supported Audio: HDMI Audio Pass-through Digital Audio up to 5.1Ch Analog Audio up to 2.0Ch Separate Audio Ports: Coax and balanced analog IR Support: 20 - 60KHz Serial Interface: RS-232 Transmission Protocol: HDBaseT Transmission Medium: 4 x Cat.6 Special Features: PoC (Power over Cable), HDMI Loop Out ports, 4K to 1080p downscaler Connectors Transmitter Input: 4 x HDMI (Female), 5 x 3.5mm IR (Female) Transmitter Output: 4 x HDMI (Female), 4 x Coax RCA (Female), 4 x L/R Audio 5-pin phoenix, 5 x 3.5mm IR (Female), 4 x RJ45 HDBaseT (Female) Transmitter Bidirectional Ports: RS-232 9 pin (Female), RJ45 (Female) Transmitter Power: IEC C14 Receiver Input: 3.5mm IR (Female), RJ45 HDBaseT (Female) Receiver Output: HDMI (Female), 3.5mm Audio (Female), 3.5mm IR (Female) Receiver Bidirectional Ports: RS-232 3 pin phoenix Receiver Power: 5.5/2.1mm Physical Properties Dimensions: Matrix: 440x200x45mm (17.32x7.87x1.77in) Receivers: 140x65x18mm (5.51x2.56x0.71in) Housing Material: Metal Net Weight: 5.31Kg (11.71lb) Operating Temperature: 0°C - 40°C (32°F - 104°F) Storage Temperature: -20°C - 60°C (-4°F - 140°F) Humidity: 20 - 90% RH (Non-condensing) Power Requirements: 60W Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 510x401x98mm (20.08x15.79x3.86in) Gross Weight: 6.33kg (13.96lb) Warranty: 2 years Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Delivery

Orders are dispatched from our Australian distribution partners. Delivery estimates are confirmed at checkout against live supplier availability, and you will receive tracking as soon as your order ships.

Larger orders may arrive in more than one shipment, each tracked separately. Until customer accounts are available, contact our team for the status of a shipment.

Warranty, returns and support

This product carries the manufacturer’s Australian warranty. Your rights under the Australian Consumer Law apply in addition to any warranty and cannot be excluded.

See returns and refunds, warranty claims, or contact our support team.
