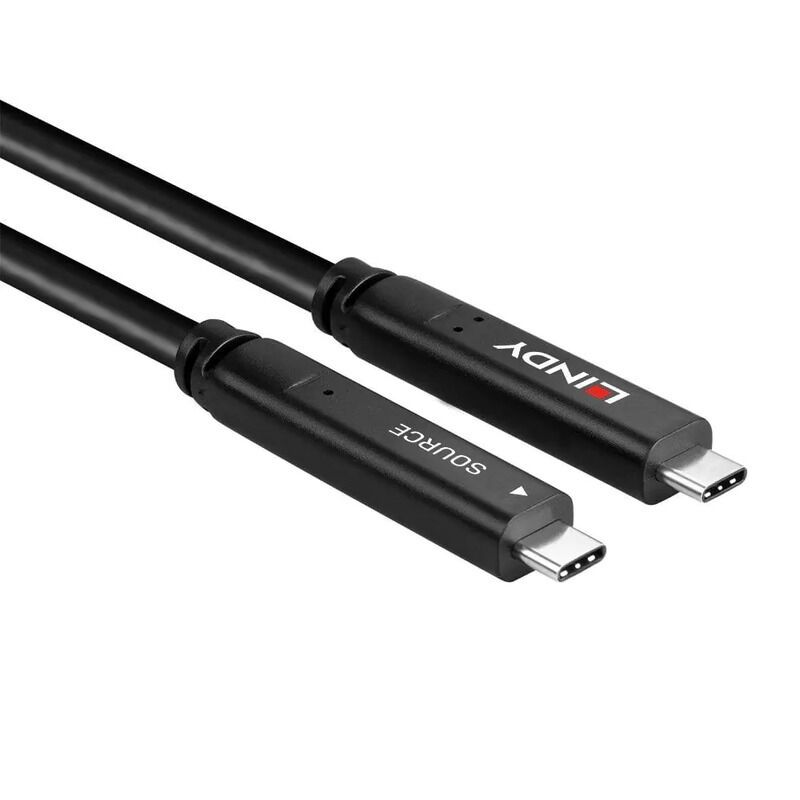

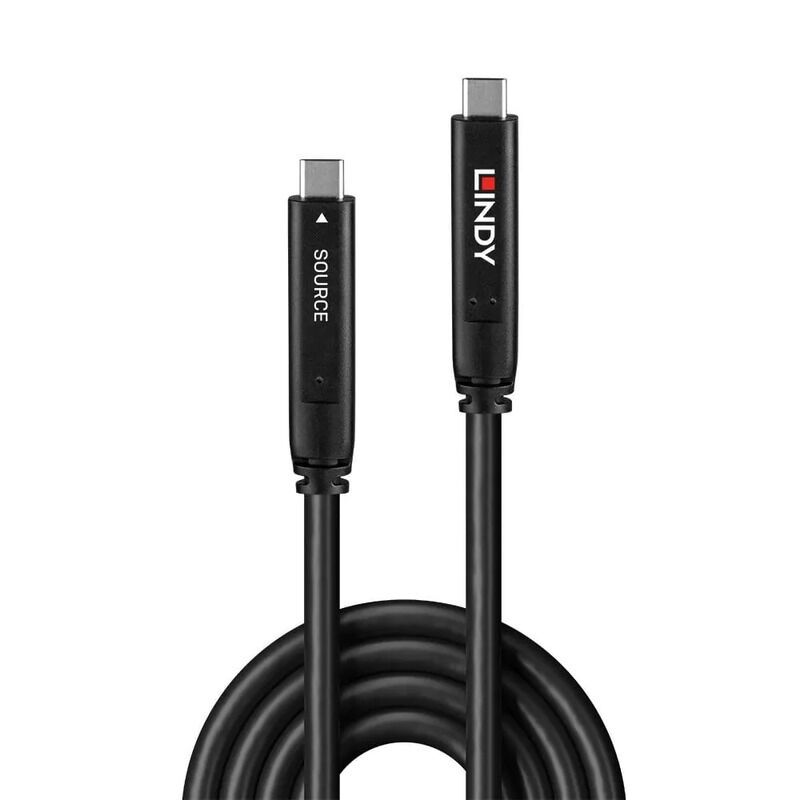

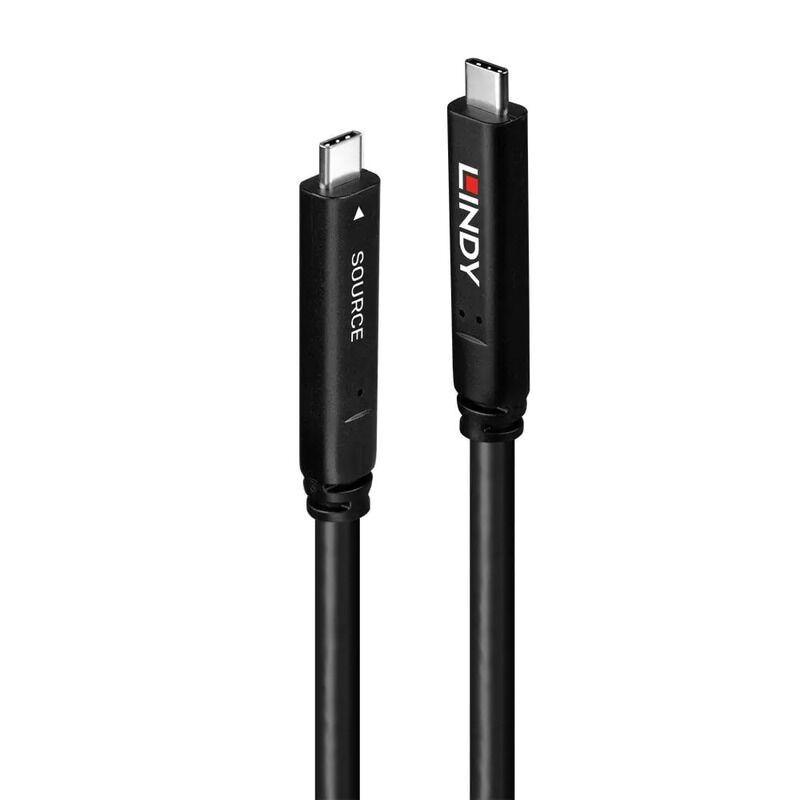

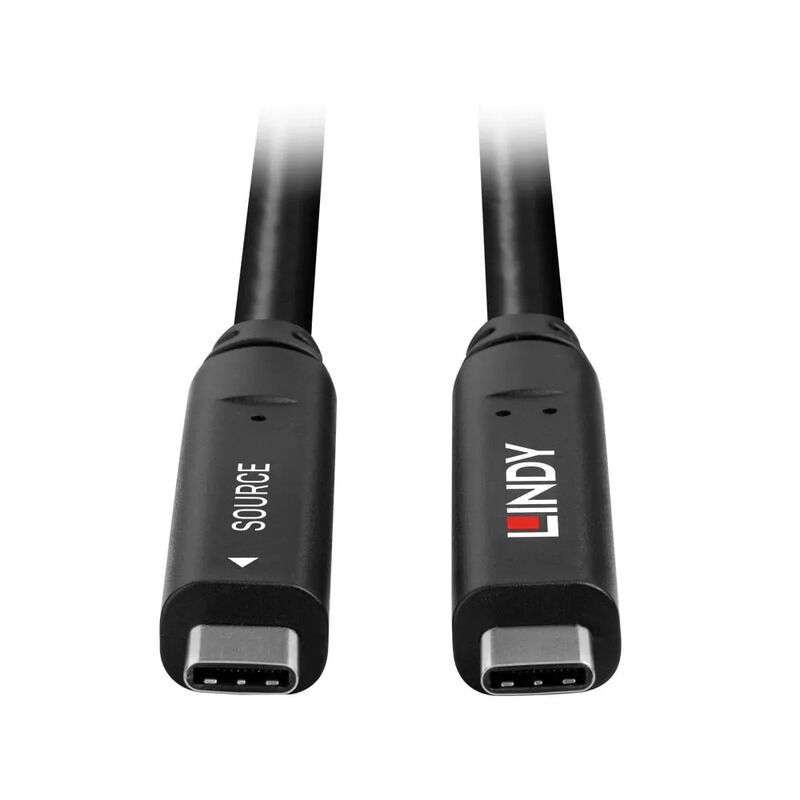

Lindy 10M Usb 3.2 & DP Cable
SKU GT-023484 · MPN 43398 · GTIN 4002888433983
$540.95
Includes GST. Delivery calculated at checkout.
Out of stock
Payment options are shown at checkout.
Specifications
| Bulky Item | No |
|---|---|
| Dangerous Goods | No |
| Pack Quantity | 1 |
Description
Lindy 10m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable Features 10m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable for data and video extension Data transfer rates up to 10Gbps Supports DisplayPort Alternate Mode and DP 1.4 (4 lanes) with video resolutions up to 4K 3840x2160@144Hz Supports Power Delivery up to 60W (20V 3A) 2 year warranty Specifications Connectors Connector A: USB Type C Male Connector B: USB Type C Male Power: PD 20V / 3A (60W) Housing Material: Plastic Connector Plating: Stainless Steel + Solder Nickel 50u" min. Pin Construction: Copper Alloy + Mating area Au Pin Plating: Mating area: 2µ" Au min. Dimensions (approx.) WxDxH: 55x9x12.35mm (2.17x0.35x0.49in) Cable Construction Length: 10m (32.81ft) Standard: USB 3.2 / 3.1 Gen 2 Colour: Black Type: Round Jacket Diameter: 6.5mm (0.26in) Jacket Material: PVC Conductor Material: - Conductor Gauge: 21AWG*3 (Power) Shielding: Tinned Copper Specifications Supported Bandwidth: 10Gbps (USB 3.2 Gen 2), 32.4Gbps (DP 1.4, 4 lanes) Maximum Resolution: 4K 3840x2160@144Hz Nominal Attenuation: ?10dB/km@850nm, ?8dB/km@1300nm Minimum Bend Radius: Installation: 100mm; Operation: 50mm (IEC-60794-1-21) Maximum Tensile Load: Installation: 350N; Operation: 200N IEC-60794-1-21 Operating Temperature: 5°C to 60°C (41°F - 140°F) Storage Temperature: -20°C to 80°C (-4°F - 176°F) Transmission Medium: Optical Fiber 62.5/125 Multimode Fiber Transmission Technology: 850nm Laser Optical Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in) Net Weight: 0.81kg (1.79lb) Gross Weight: 0.95kg (2.09lb) Warranty (Years): 2 Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
