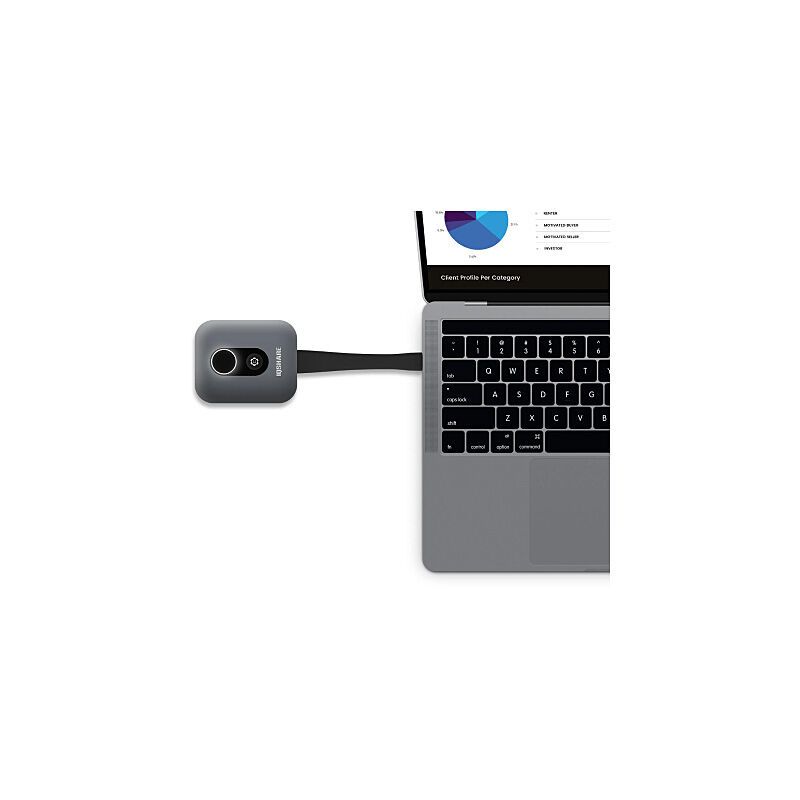

Iqboard Iqshare Button

IQBOARD IQShare Button Features UFC (Ultra Fast Casting) Technology Two buttons with customized button Plug & play Automatic pairing APP Free Touchback 4K wireless casting Wireless BY Specifications Interface HDMI (19PIN) USB-A USB-C (With DisplayPort Alternate Mode) Output Resolution 4K@30FPS Video Standard HDMI1.4 DP1.2 eDP1.4 USB Standard 2.0 Audio 16bit 44KHz USB HID Function YES BYOM Function YES Supported System Windows7/8/10, macOS, ChromeOS, Android, Linux Any device supports full featured Type-C (DP Alt mode) Touchback Control 10 Points (Linux, Windows, ChromeOS) Mouse mode (macOS) Wireless Transmission Protocol IEEE 802.11 a/b/g/n/ac/ax Wi?Fi Standard 2.4 GHz & 5 GHz Wireless Transmission Frame Rate (depending on environment) BYOD mode: Up to 60FPS BYOM mode: Up to 30FPS Input Resolution BYOD mode: Up to 4K 30FPS BYOM mode: Up to 1080P 30FPS Audio Rate 16bit 44KHz Distance (between Button and IFP/BOX) Max. 30m (depend on network condition) Authentication Protocol WPA2 Personal (WPA2?PSK) Security (Encryption) AES Button Cast button*1 Custom button*1 (Linux, Windows and macOS are supported) Power 5V, 0.9A, Max 4.5W Temperature Range Operating: 0°C to +40°C (+32°F to +104°F) Storage: -10°C to +60°C (+14°F to +140°F) Humidity Range Operating: 10% to 80% relative humidity Storage: 5% to 90% relative humidity Dimension (W*H*D) (mm) 63*175*17 Weight (g) 80
