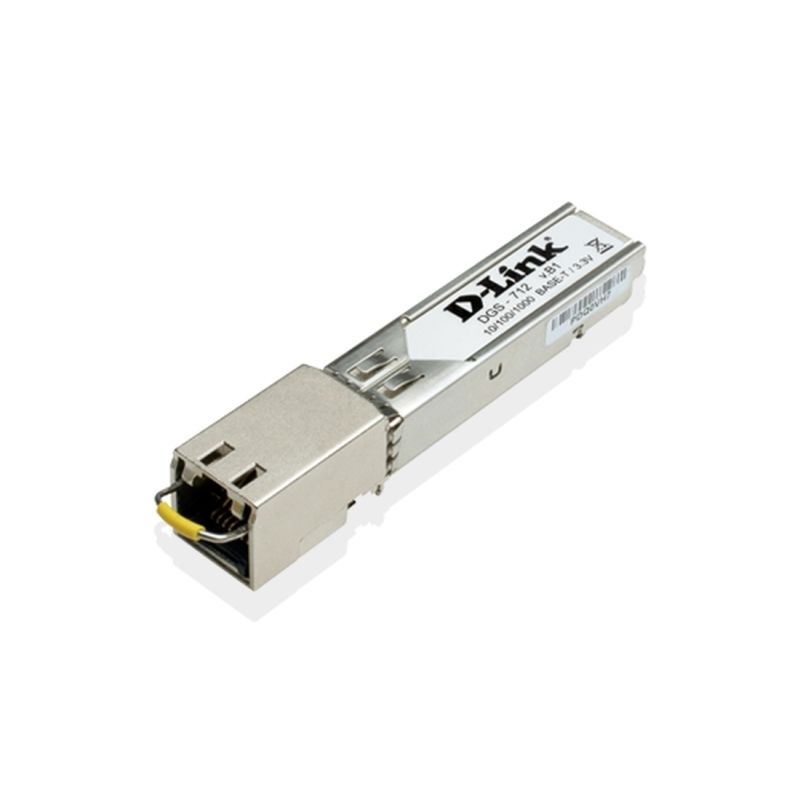

D-link DGS-712 Transceiver

1000Base-TX RJ45 SFP Transceiver - 100m Specifications: Standard: IEEE 802.3ab 1000BASE-T Gigabit Ethernet Transceiver Type: SFP (Small Form Pluggable) Connector: RJ-45 Auto MDI/MDIX: Automatic crossover detection enabled, External crossover cable not required Data Rate: 1,000 Mbps (IEEE 802.3 compatible), 10/100/1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only Cable Type: Cat. 5 twisted-pair cable Maximum Cable Distance Coverage: 100 meters Supply Current: 350mA (typical), 400mA (maximum), 1.3W max power over full range of voltage and temperature * Input Voltage: 3.1V (minimum), 3.3V (typical), 3.5V (maximum), Referenced to GND Maximum Voltage: 4V Surge Current: 30mA, Hot-plug above steady state current * Operating Temperature: 0 to 85 C Storage Temperature: -40 to 85 C Features Up to 1.25Gb/s bi-directional data links Hot-pluggable SFP footprint Extended case temperature range Fully metallic enclosure for low EMI Low power dissipation (typical 1.2 watts) RJ-45 connector assembly Access to physical layer IC via 2-wire serial bus 10/100/1000 BASE-T operation in host systems with SGMII interface Gigabit Ethernet over Cat. 5 cable +3.3V electrical power interface
