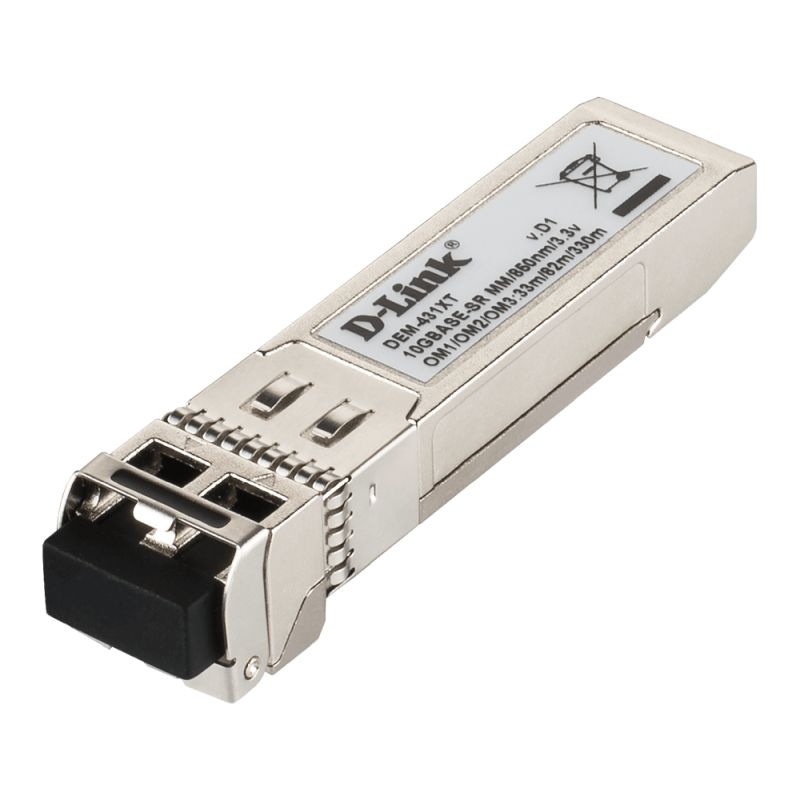

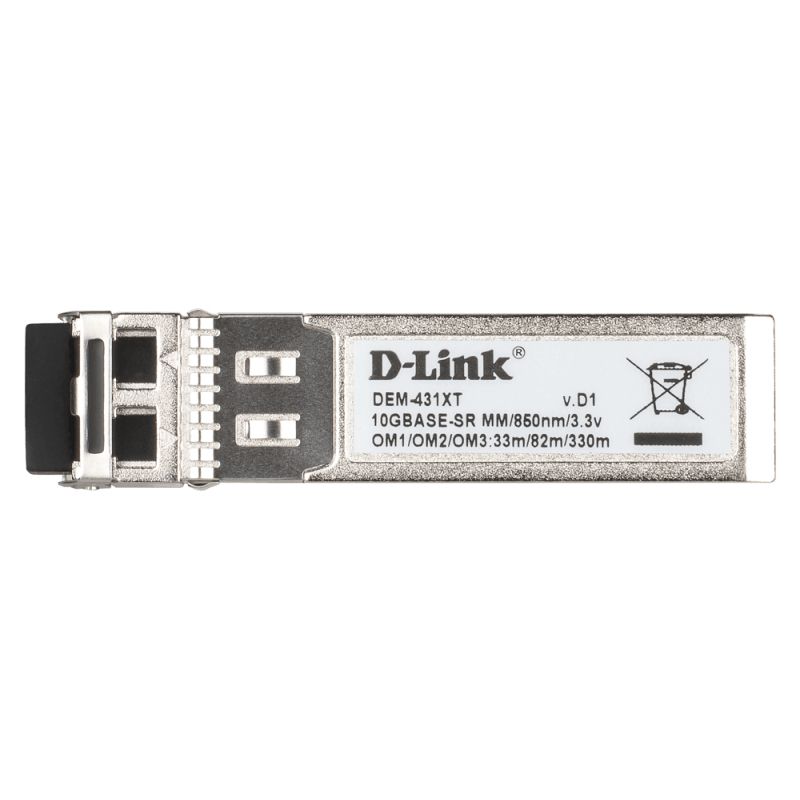

D-link DEM-431XT Transceiver
SKU GT-020621 · MPN DEM-431XT · GTIN 790069353147
$274.95
Includes GST. Delivery calculated at checkout.
In stock
Payment options are shown at checkout.
Specifications
| Bulky Item | No |
|---|---|
| Contains Button Battery | No |
| Dangerous Goods | No |
| Pack Quantity | 1 |
Description
D-Link's 10G SFP+ Module series are hot-swappable, 10GBASE SFP+ Module Series transceivers offer a wide variety of 10G Ethernet connectivity options for data centres, enterprise wiring closets, and service provider transport applications. Specifications: Standard Compliance: IEEE-802.3ae, 10GBASE-SR Form Factor Type: SFP+ Fibre Channel FC-PI: Standard 1200-Mx-SN-I Fiber Media Support: Multi-Mode Distance Capacity: 62.5m, 160 MHz-km: 26m, 62.5m, OM1 200 MHz-km: 33m, 50m, 400 MHz-km: 66m, 50m, OM2 500 MHz-km: 82m, 50m, OM3 2000 MHz-km: 300 m Hot Pluggable: Yes Compliant: MSA, RoHS Speed: 10 Gbps Connector: Duplex LC Connector Wavelength: 850 nm Output Optical Power (TX Optical Power): Max.: -1 dBm, Min.: -6.5 dBm Input Optical Power (RX Optical Power): Max.: -1 dBm, Min.: -11.1 dBm Sensitivity: -11.1 dBm Cable Type: Multi-mode 50/125 um or 62.5/125 um fibre Power: 3.3 V Heat Generated: 3.6 kJ/h MTBF (Hours): 3,960,000 Operating Temperature: 0 to 70 C Storage Temperature: -40 to 85 C Operating Humidity: 5 to 85% Storage Humidity: 5 to 95% Dimensions: 14.8 x 56.5 x 11.85 mm Weight: 18 g Bail Latch Color: Beige EMI: CE, FCC, VCCI Safety: UL, TUV, CDRH Features: Enhanced Small Form-Pluggable (SFP+) form factor Hot pluggable Support 10G Ethernet Feature Digital Diagnostics Monitoring (DDM)1 RoHS Compliant Compliant with MSA (Multiple Source Agreement) Compliant with IEEE802.3ae and 802.3aq standards
