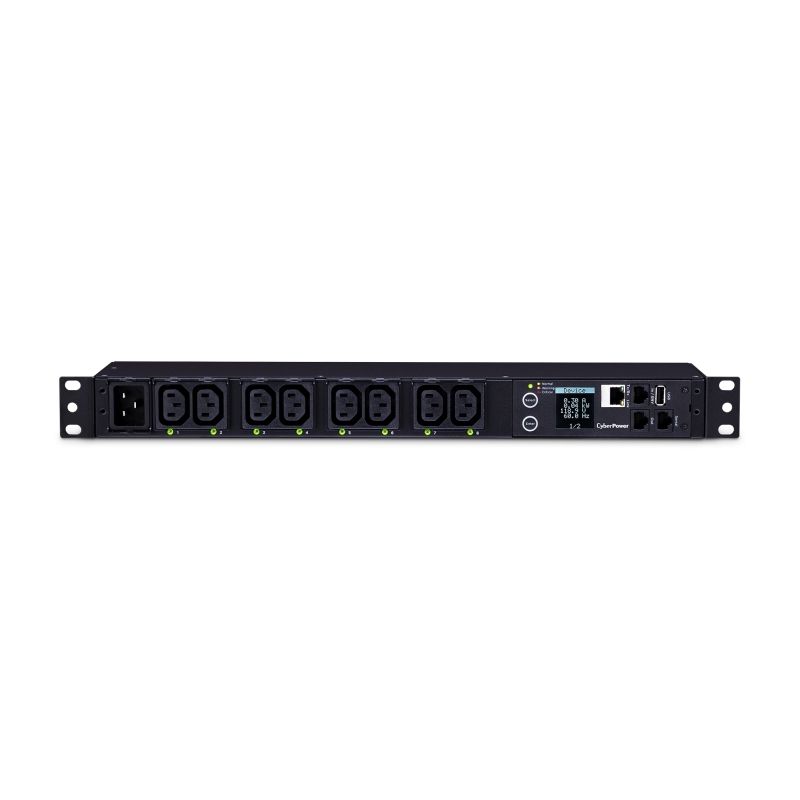

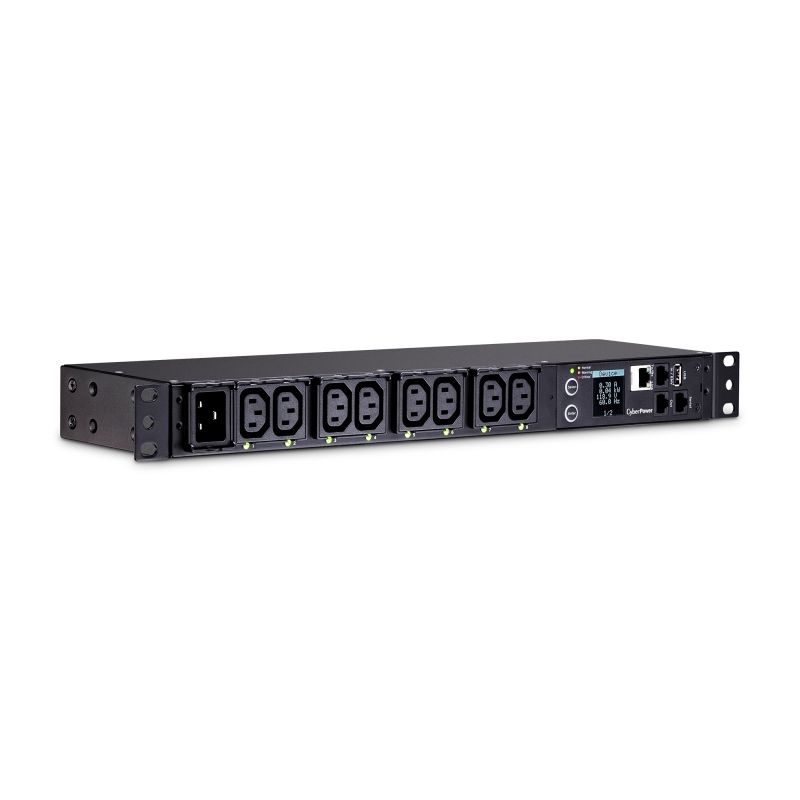

CP Switched Mbo Epdu 16AMP

CP Switched MPO ePDU 16Amp Specifications: Phase: Single Phase Nominal Input Voltage ( Vac ): 100 - 240 Input Frequency ( Hz ): 50 / 60 Maximum Input Current ( A ): 16 Input Connector Type: IEC C20 x 1 Power Cord Length: 3.05 Output Voltage ( V ): Depends on Input Idle Power Consumption ( W ): Outlets - # of Bank(s): 1 Outlet(s) - Total: 8 Outlet(s) - Front: 8 Outlet Type: IEC C13 x 8 Remote Individual Outlet Control: Yes LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version Hot-swappable LCD Module: Yes Auto LCD Orientation: Yes LCD Setting & Control: Outlet Control | LCD Settings | Reset / Reboot LED Indicators: PDU Status | Tx/Rx | Link | Outlet Outlet Metering Capability: ± 1% A-type USB Port: Yes Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out)) Environmental Sensor Supported: Yes User-upgradeable Firmware: Yes Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management) Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog Authentication: RADIUS | LDAP | LDAPS | Windows AD Installed Rack Height (U): 1 Form Factor: 1U Vertical Rackmount | 1U Horizontal Rackmount Enclosure Construction: Steel Cord Retention Tray: Yes IEC Receptacle Locking: Yes External Site Ground Pin: Yes Adjustable Mounting Brackets: 2 Set (L-short | L-long) Dimensions: 433 x 44 x 112mm Weight: 2.1kg Certifications: CE | FCC Class A | UL60950 | UL62368 | EN 55032 Class A | RoHS Warranty: 2 Years Features: Real-time Local/Remote Monitoring and Switching of Individual Outlet Work under High Temperature ±1% Measurement Accuracy Digital Real-time Load Display Hot-swappable LCD Design LED Status Indicator Supports ENVIROSENSOR PowerPanel Management Software Cord Retention Tray Controllable Receptacles with Power Sequencing Ultra Low Power Consumption Industrial-grade Metal Housing User Configurable Color LCD Rotatable LCD for Proper Display Orientation Firmware Upgrade via USB User-upgradeable Firmware Adjustable Mounting Brackets IEC Receptacle Locking What's in the box? 1 x PDU81005 1 x User Manual 1 x Cord Retention Tray 1 x Mounting Brackets 1 x Cable Ties 1 x Screw Kit 1 x Power Cord 1 x Serial Cable
