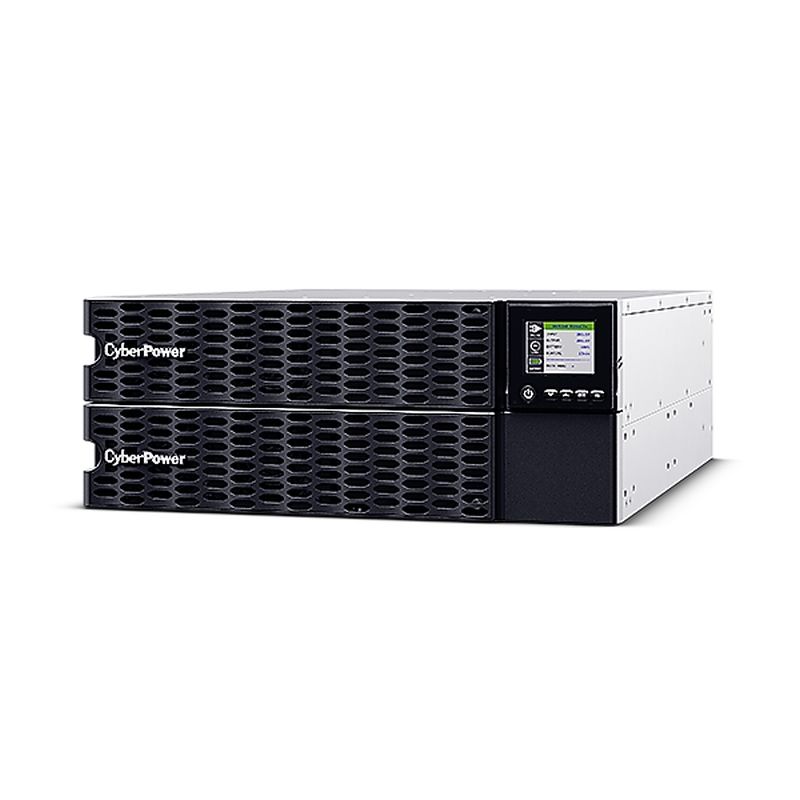

CP OL10000VA Rack Tower Ups

CP OL10000VA Rack Tower UPS Specifications: Phase: Single Phase Form Factor: Rackmount / Tower UPS Topology: Online Double Conversion Energy Saving Technology: Online ECO Mode Efficiency > 98% Active PFC Compatibility: Yes Generator Compatibility: Yes Input Voltage Range: 200 - 240v Input Frequency: 50 ± 10 | 60 ± 10 Input Frequency Detection: Auto-sensing Rated Input Current: 54a Input Connector Type: Hardwire Terminal Block Output Capacity (VA): 10000 Output Capacity (Watts): 10000 On Battery Waveform: Pure Sine Wave Overload Protection: Internal Current Limiting / Circuit Breaker Overload Protection (Line Mode): 105-125% Load for 1 min / 125-150% Load for 10 sec Overload Protection (Battery Mode): 105-130% Load for 10 sec / 130-150% Load for 2 sec Overload Protection (Bypass Mode): Circuit Breaker Crest Factor: 3 : 1 No. of Outlets: 11 Battery Runtime at Half Load: 8.3 Mins Battery Runtime at Full Load: 2.4 Mins Typical Recharge Time: 4 Hours Start On Battery: Yes Smart Battery Management (SBM): Yes Built-in Battery Management Module: Yes User-replaceable: Yes - Qualified Personnel Only Hot-swappable: Yes Battery Type: Sealed Lead-acid Replacement Battery Pack (RBP): RBP0159 Battery Voltage: 192v Compatible Extended Battery Module (EBM): BPE192VL2U01 (Built-in Charger) Surge Suppression: 2430 Joules Serial Port: Combo (RS232 + Dry Contact) SNMP/HTTP Remote Monitoring: Yes - RMCARD205 included Dimensions: 433 x 173 x 720mm Weight: 71.2kg Certifications: CE / EAC / RCM RoHS: Yes Features: Online (Double Conversion) UPS Topology High Density Design High Output Power Factor Tiltable LCD Panel Surge and Spike Protection Controllable Outlet Groups Battery Management Technology Extended Battery Module (EBM) Emergency Power Off (EPO) Port PowerPanel Management Software ECO Mode Color LCD Panel Quick Charging Technology Automatically rotatable LCD Critical/Non-critical Load Outlets Generator Compatible Hot-swappable Batteries Smart Battery Management SNMP/HTTP Remote Management Capability
