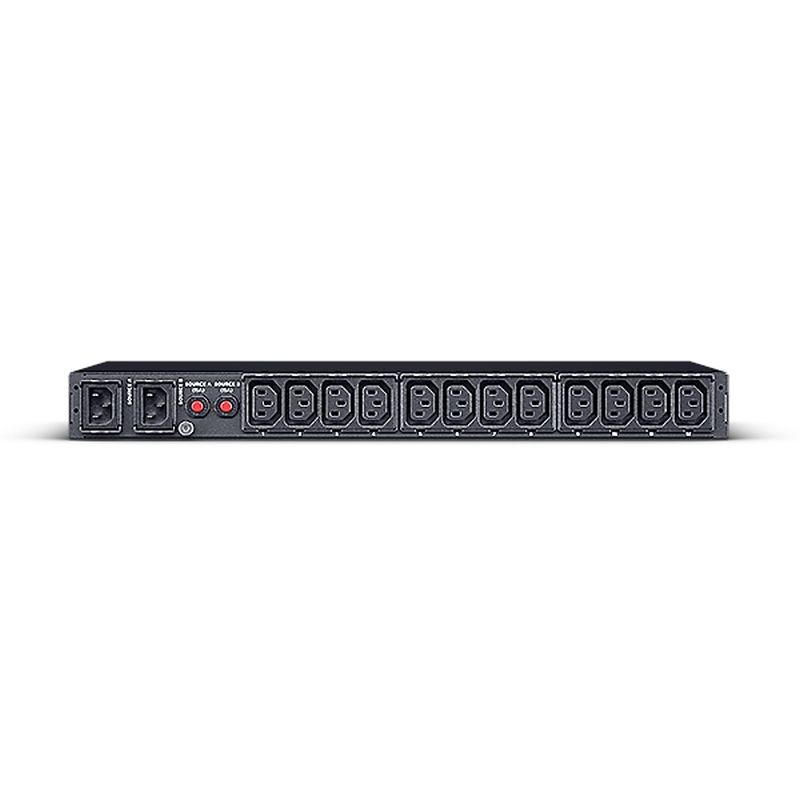

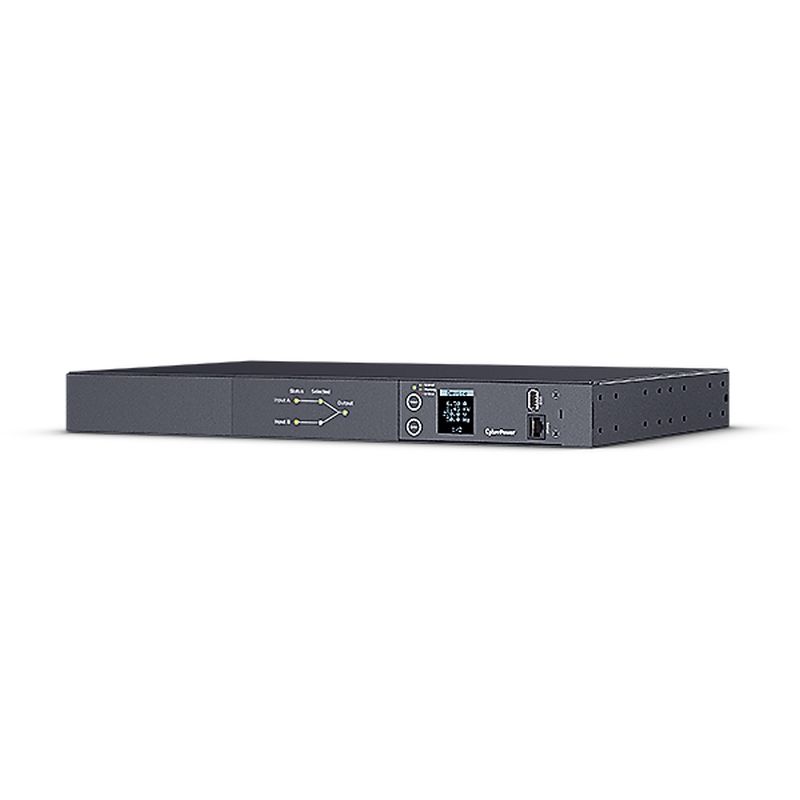

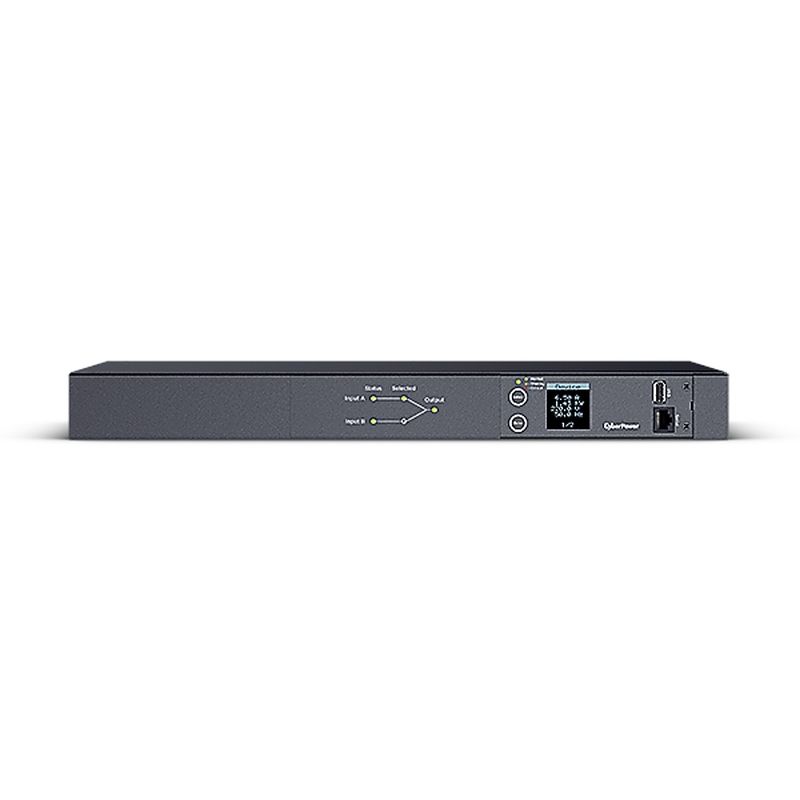

CP Metered Ats 10AMP
SKU GT-021603 · MPN PDU24004 · GTIN 4711027799810
$972.95
Includes GST. Delivery calculated at checkout.
Out of stock
Payment options are shown at checkout.
Specifications
| Bulky Item | No |
|---|---|
| Dangerous Goods | No |
| Pack Quantity | 1 |
Description
CP Metered ATS 10amp Specifications: Phase: Single Phase Dual Power Inputs: Yes Nominal Input Voltage ( Vac ): 200 - 240 Input Frequency ( Hz ): 50 / 60 Maximum Input Current ( A ): 12 (UL) | 10 (CE) Overload Protection: Circuit Breaker Input Connector Type: IEC C14 x 2 Power Cord Length: 3.05m Output Voltage ( V ): Depends on Input Outlets - # of Bank(s): 1 Outlet(s) - Total: 12 Outlet(s) - Rear: 12 Outlet Type: IEC C13 x 12 LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Serial Number | Hardware Version | Firmware Version Hot-swappable LCD Module: Yes LCD Setting & Control: Preferred Source | Source Configuration | Load Configuration | LCD Settings | Reset / Reboot LED Indicators: PDU Status | Source Status | Load Connectivity Port: RJ45 (for Serial) User-upgradeable Firmware: Yes Installed Rack Height (U): 1 Form Factor: 1U Horizontal Rackmount Enclosure Construction: Steel Cord Retention Tray: Yes IEC Receptacle Locking: Yes External Site Ground Pin: Yes Adjustable Mounting Brackets: 1 Set Dimensions: 433 x 44 x 215mm Weight: 3.5kg Certifications: CE | FCC Class A | UL62368 | EN 55032 Class A | IEC 62368 | RoHS Features: Real-time Local Monitoring Quick Transfer Time (Total Digital Real-time Load Display Hot-swappable LCD Design Firmware Upgrade via USB Adjustable Mounting Brackets IEC Receptacle Locking Dual Inputs Industrial-grade Metal Housing User Configurable Color LCD LED Status Indicator User-upgradeable Firmware Cord Retention Tray What's in the box? 1 x PDU24004 1 x User Manual 1 x Cord Retention Tray 1 x Mounting Brackets 1 x Cable Ties 1 x Screw Kit 1 x Power Cord 1 x Serial Cable
Delivery
Orders are dispatched from our Australian distribution partners. Delivery estimates are confirmed at checkout against live supplier availability, and you will receive tracking as soon as your order ships.
Larger orders may arrive in more than one shipment, each tracked separately. Until customer accounts are available, contact our team for the status of a shipment.
Warranty, returns and support
This product carries the manufacturer’s Australian warranty. Your rights under the Australian Consumer Law apply in addition to any warranty and cannot be excluded.
See returns and refunds, warranty claims, or contact our support team.
