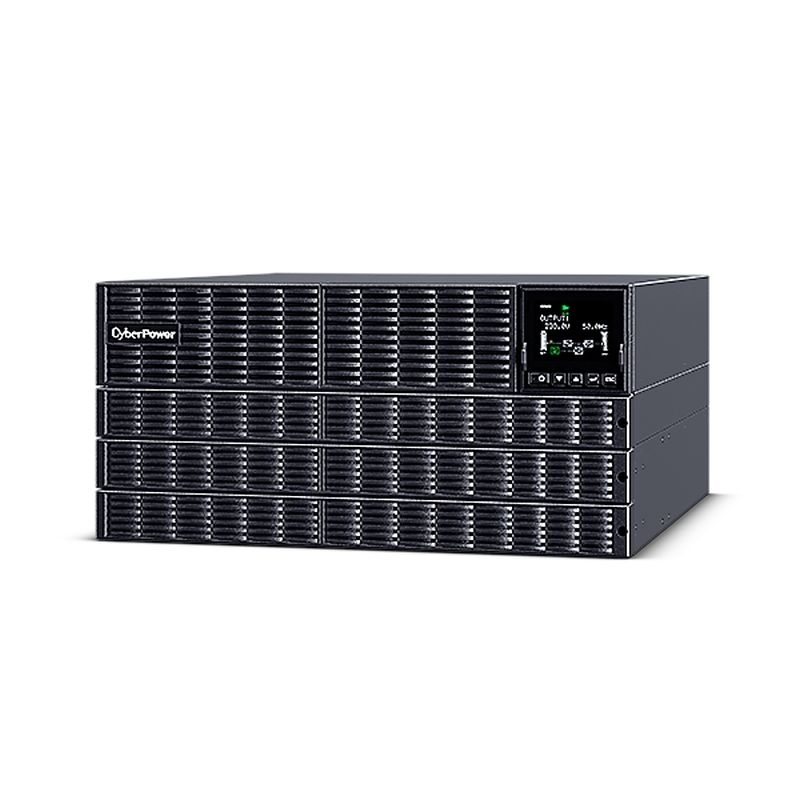

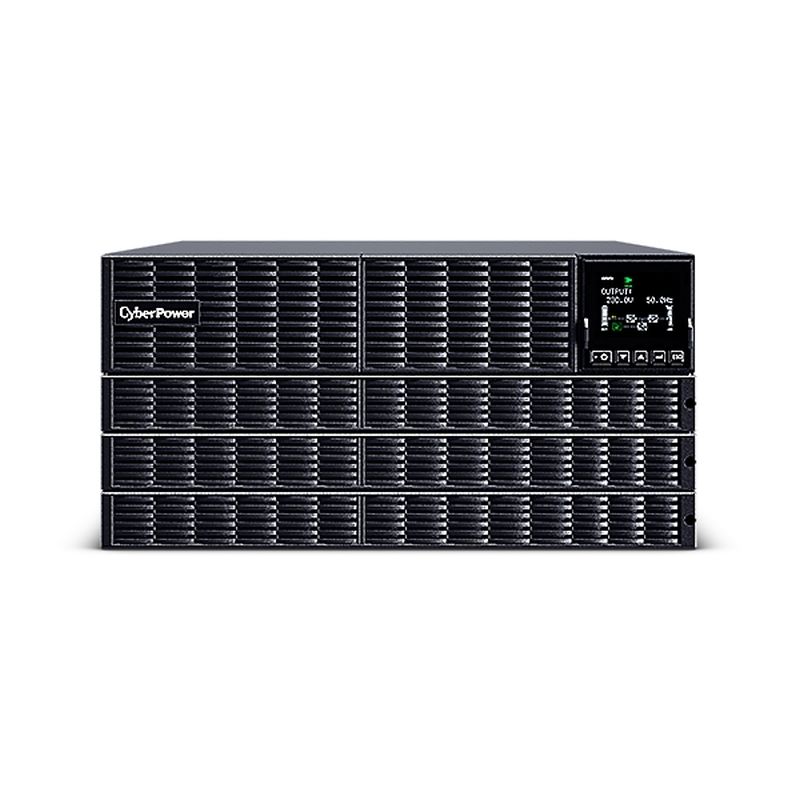

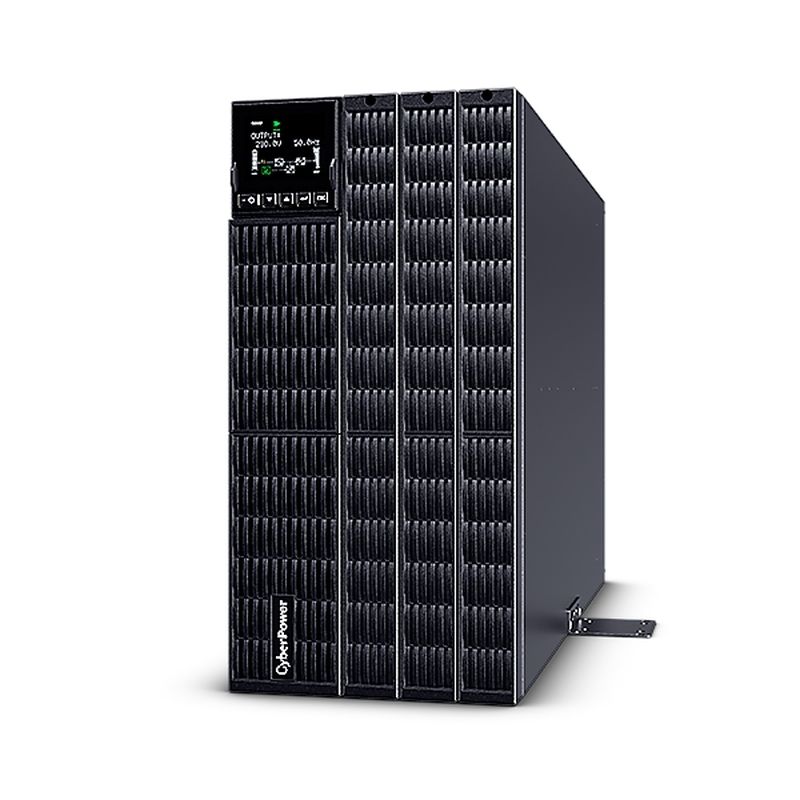

CP 6000VA/6000W Rack Tower Ups

CP 6000VA/6000W Rack Tower UPS Specifications: Phase: Single Phase Form Factor: Rackmount / Tower UPS Topology: Online Double Conversion Energy Saving Technology: Online ECO Mode Efficiency > 98% Active PFC Compatibility: Yes Generator Compatibility: Yes Nominal Input Voltage ( Vac ): 230 Input Voltage Range ( Vac ): 110 - 300 Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 144 Vac | 0-75% Load for 145 - 179 Vac | 0-100% Load for 180 - 300 Vac Input Frequency ( Hz ): 50 - 60 Input Frequency Detection: Auto-sensing Rated Input Current ( A ): 30 Input Power Factor: 0.99 Input Connector Type: Hardwire Terminal Block Capacity (VA): 6000 Capacity (Watts): 6000 On Battery Waveform: Pure Sine Wave On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5% ECO Mode Voltage Tolerance: ± 10 % Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse Overload Protection (Line Mode): 105-130% Load for 10 sec, >130% Load for 1.5 sec Overload Protection (Battery Mode): 105-130% Load for 10 sec, >130% Load for 1.5 sec Overload Protection (Bypass Mode): 110-120% Load for 30 min, 120-130% Load for 2 min, 130-150% Load for 15 sec, >150% Load Immediately Harmonic Distortion (Linear Load): THD?1.5% Harmonic Distortion (Non-linear Load): THD?2% Internal Bypass: Automatic Bypass / Manual Bypass Maintenance Bypass: Yes Outlet(s) - Total: 9 Outlet Type: Hardwire Terminal Block x 1 | IEC C13 x 4 | IEC C19 x 4 Typical Transfer Time ( ms ): 0 Runtime at Half Load ( min ): 17.7 Runtime at Full Load ( min ): 5.6 Typical Recharge Time ( Hours ): 4 Maximum Charging Current ( A ): 4 Adjustable Charging Current ( A ): 1 - 4 Start On Battery: Yes Smart Battery Management (SBM): Yes User-replaceable: Yes Hot-swappable: Yes Compatible Extended Battery Module (EBM): BPS240V7ART3U Extended Battery Module Auto-detection: Yes Max. EBM Quantity ( pcs ): 10 Surge Suppression ( Joules ): 1335 EMI/RFI Filtration: Yes Tiltable LCD Panel: 15 Degrees HID Compliant USB Port(s): 1 Serial Port: RS232 Dry Contact (with Relay): Yes Emergency Power Off (EPO) Port: Yes Power Management Software: PowerPanel Business (Recommended) SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205 Remote Cloud Card: Yes - Built-in Remote Cloud Card by Ethernet included Enclosure Construction: Metal Rackmount Rail: Yes Rackmount Ears: Yes Dimensions: 433 x 213.5 x 661mm Weight: 75kg Installed Rack Height ( U ): 5 Online Thermal Dissipation ( BTU/hr ): 1777 Audible Noise at 1.0M from Surface of Unit: 62 dBA Certifications: CE / RoHS Features: Online (Double Conversion) UPS Topology High Output Power Factor Overload Protection Maintenance Bypass Switch Extended Battery Module Auto-detection User-replaceable Batteries Tiltable LCD Panel Relay-type Dry Contact SNMP/HTTP Remote Management Capability (Optional) Rack/Tower Convertible Configurations ECO Mode Pure Sine Wave Output Zero Transfer Time Extended Battery Module (EBM) Adjustable Charging Current Color LCD Panel Emergency Power Off (EPO) Port PowerPanel Management Software Built-in Remote Cloud Card by Ethernet What's in the box? 1 x OLS6KERT5U UPS 1 x External Maintenance Bypass PDU 1 x Rackmount Rail 1 x Rackmount Ears 1 x Rail Kit 1 x Screw Kit 1 x Power Cord 1 x USB Cable 1 x Phone Line 1 x User Manual
