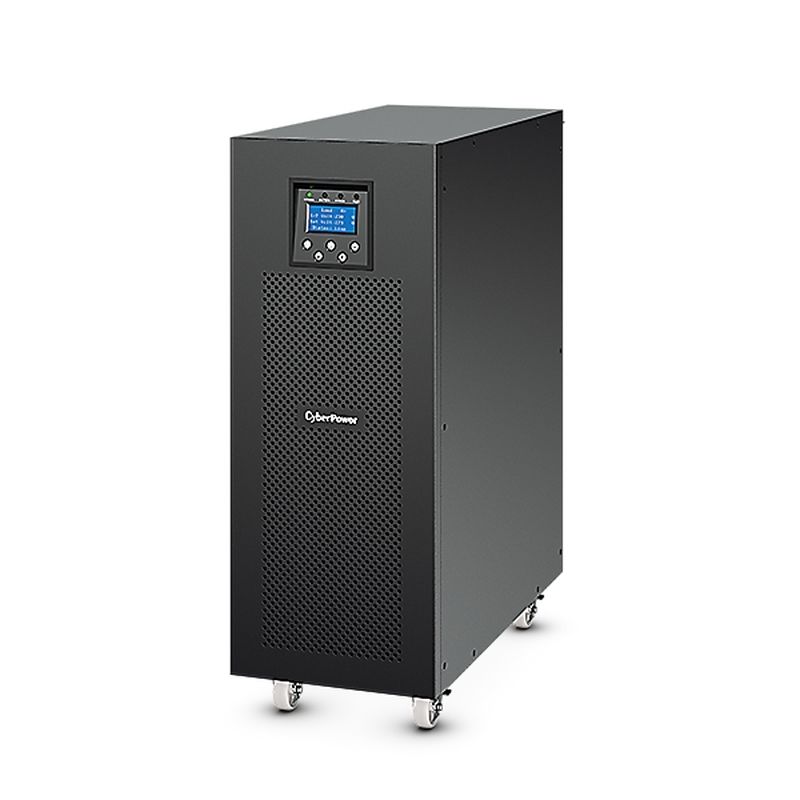

CP 6000VA/5400W Tower Ups

CP 6000VA/5400W Tower UPS Specifications: Phase: Single Phase Form Factor: Tower UPS Topology: Online Double Conversion Energy Saving Technology: Online ECO Mode Efficiency > 96% Active PFC Compatibility: Yes Generator Compatibility: Yes Nominal Input Voltage ( Vac ): 230 Input Voltage Range ( Vac ): 110 - 276 Adjustable Voltage Range ( Vac ): 0-80% Load for 110 - 276 Vac | 0-100% Load for 176 - 276 Vac Input Frequency ( Hz ): 50 ± 5 | 60 ± 6 Input Frequency Detection: Auto-sensing Rated Input Current ( A ): 27.3 Input Power Factor: 0.99 Input Connector Type: Hardwire Terminal Block Capacity (VA): 6000 Capacity (Watts): 5400 On Battery Waveform: Pure Sine Wave On Battery Frequency ( Hz ): 50 ± 0.1% | 60 ± 0.1% Power Factor: 0.9 ECO Mode Voltage Tolerance: ± 10 % Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse Overload Protection (Line Mode): 105-125% Load for 10 min, 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec Overload Protection (Battery Mode): 105-125% Load for 2 min, 125-150% Load for 30 sec, >150% Load for 1 sec Overload Protection (Bypass Mode): 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec Harmonic Distortion (Linear Load): THD?2% Harmonic Distortion (Non-linear Load): THD?5% Internal Bypass: Automatic Bypass, Manual Bypass Maintenance Bypass: Yes Outlet(s) - Total: 1 Outlet Type: Hardwire Terminal Block x 1 Typical Transfer Time ( ms ): 0 Runtime at Half Load ( min ): 18 Runtime at Full Load ( min ): 7 Typical Recharge Time ( Hours ): 7 Maximum Charging Current ( A ): 1 Start On Battery: Yes Smart Battery Management (SBM): Yes User-replaceable: No Compatible Extended Battery Module (EBM): BPSE240V47A Max. EBM Quantity ( pcs ): 15 Surge Suppression ( Joules ): 445 EMI/RFI Filtration: Yes HID Compliant USB Port(s): 1 Emergency Power Off (EPO) Port: Yes Power Management Software: PowerPanel Business (Recommended) SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205 Enclosure Construction: Metal Dimensions: 260 x 708 x 550mm Weight: 70kg Online Thermal Dissipation ( BTU/hr ): 1603 Audible Noise at 1.5M from Surface of Unit: 60 dBA Certifications: CE / RoHS Warranty: 2 Years Features: Online (Double Conversion) UPS Topology Generator Compatible Maintenance Bypass Switch Smart Battery Management (SBM) Surge and Spike Protection LCD Status Display PowerPanel Management Software ECO Mode Overload Protection Zero Transfer Time Extended Battery Module (EBM) EMI and RFI Filtration Emergency Power Off (EPO) Port SNMP/HTTP Remote Management Capability (Optional) What's in the box? 1 x OLS6000E UPS 1 x Parallel Port Cover Plate 1 x Terminal Cover 1 x Terminal Splices 1 x USB Cable 1 x User's Manual
