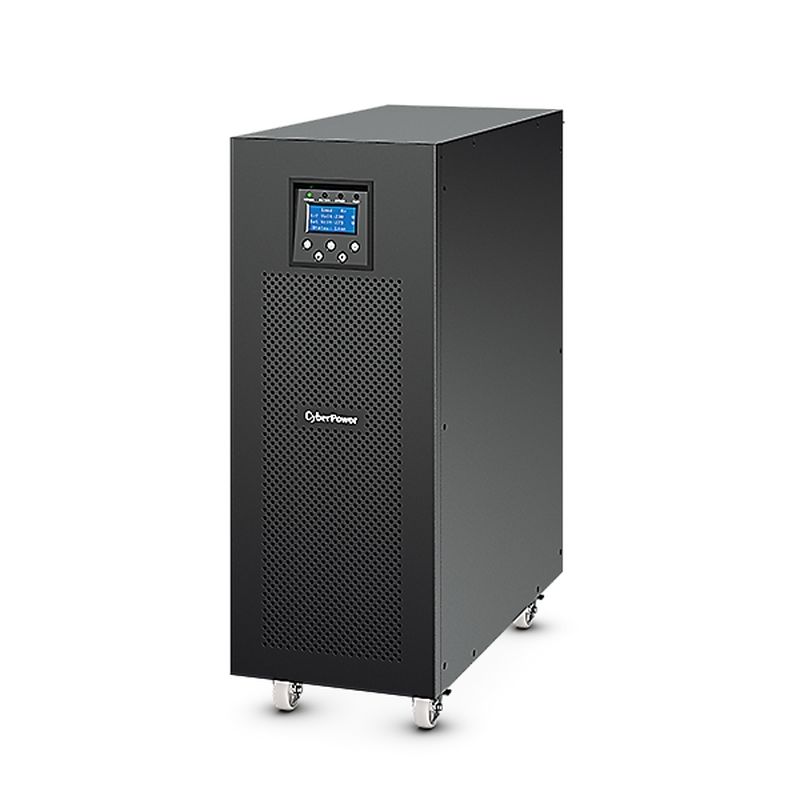

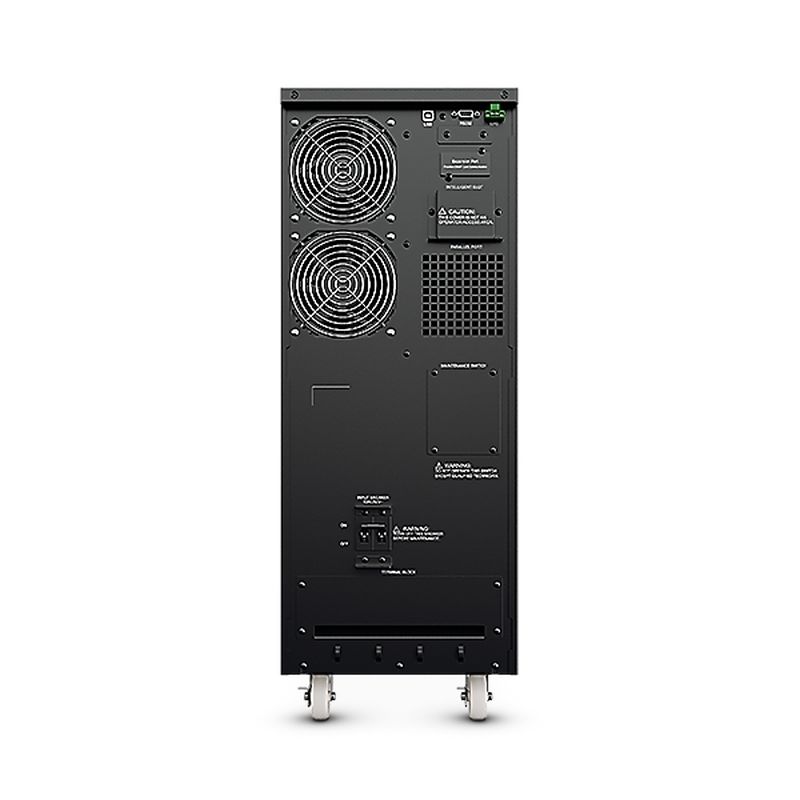

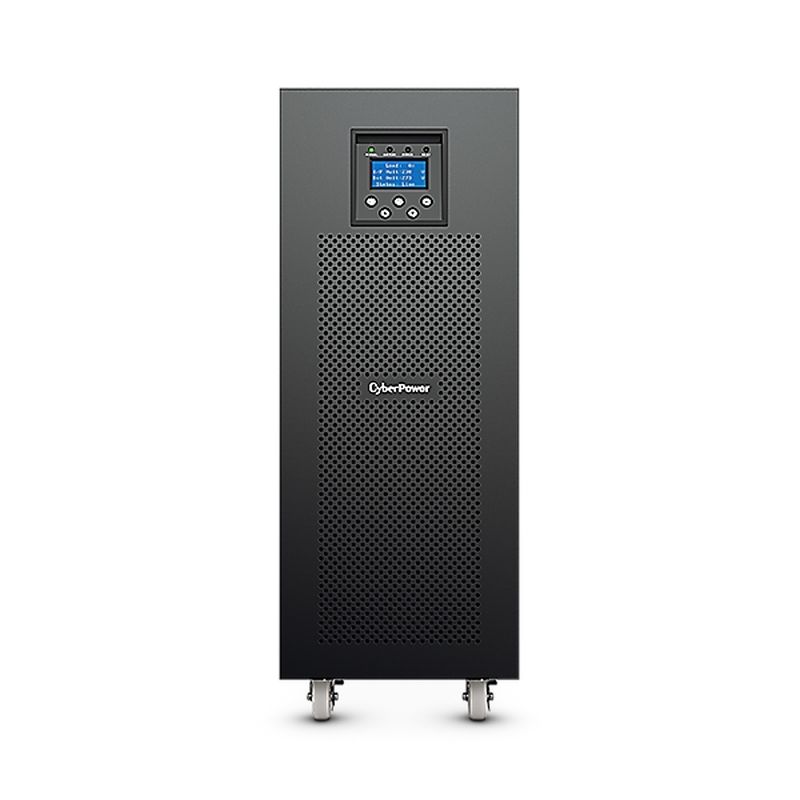

CP 10000VA/9000W Tower Ups

CP 10000VA/9000W Tower UPS Specifications: Phase: Single Phase Form Factor: Tower UPS Topology: Online Double Conversion Energy Saving Technology: Online ECO Mode Efficiency > 96% Active PFC Compatibility: Yes Generator Compatibility: Yes Nominal Input Voltage ( Vac ): 230 Input Voltage Range ( Vac ): 110 - 276 Adjustable Voltage Range ( Vac ): 0-80% Load for 110 - 276 Vac | 0-100% Load for 176 - 276 Vac Input Frequency ( Hz ): 50 ± 5 | 60 ± 6 Input Frequency Detection: Auto-sensing Rated Input Current ( A ): 45.5 Input Power Factor: 0.99 Input Connector Type: Hardwire Terminal Block Capacity (VA): 10000 Capacity (Watts): 9000 On Battery Frequency ( Hz ): 50 ± 0.1% | 60 ± 0.1% Power Factor: 0.9 ECO Mode Voltage Tolerance: ± 10 % Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse Overload Protection (Line Mode): 105-125% Load for 10 min, 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec Overload Protection (Battery Mode): 105-125% Load for 2 min, 125-150% Load for 30 sec, >150% Load for 1 sec Overload Protection (Bypass Mode): 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec Harmonic Distortion (Linear Load): THD?2% Harmonic Distortion (Non-linear Load): THD?5% Maintenance Bypass: Yes Outlet(s) - Total: 1 Outlet Type: Hardwire Terminal Block x 1 Runtime at Half Load ( min ): 11 Runtime at Full Load ( min ): 4 Typical Recharge Time ( Hours ): 7 Maximum Charging Current ( A ): 1 Start On Battery: Yes Smart Battery Management (SBM): Yes User-replaceable: No Compatible Extended Battery Module (EBM): BPSE240V47AOA Max. EBM Quantity ( pcs ): 15 Surge Suppression ( Joules ): 445 EMI/RFI Filtration: Yes HID Compliant USB Port(s): 1 Emergency Power Off (EPO) Port: Yes Management Cable ( pcs ): USB Cable x1 Power Management Software: PowerPanel Business (Recommended) SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205 Enclosure Construction: Metal Dimensions: 260 x 708 x 550mm Weight: 86kg Online Thermal Dissipation ( BTU/hr ): 2672 Audible Noise at 1.5M from Surface of Unit: 60 dBA Certifications: CE / RoHS Features: Online (Double Conversion) UPS Topology Generator Compatible Maintenance Bypass Switch Smart Battery Management (SBM) Surge and Spike Protection LCD Status Display PowerPanel Management Software ECO Mode Overload Protection Zero Transfer Time Extended Battery Module (EBM) EMI and RFI Filtration Emergency Power Off (EPO) Port SNMP/HTTP Remote Management Capability (Optional) What's in the box? 1 x OLS10000E UPS 1 x Parallel Port Cover Plate 1 x Terminal Cover 1 x Terminal Splices 1 x USB Cable 1 x User Manual
